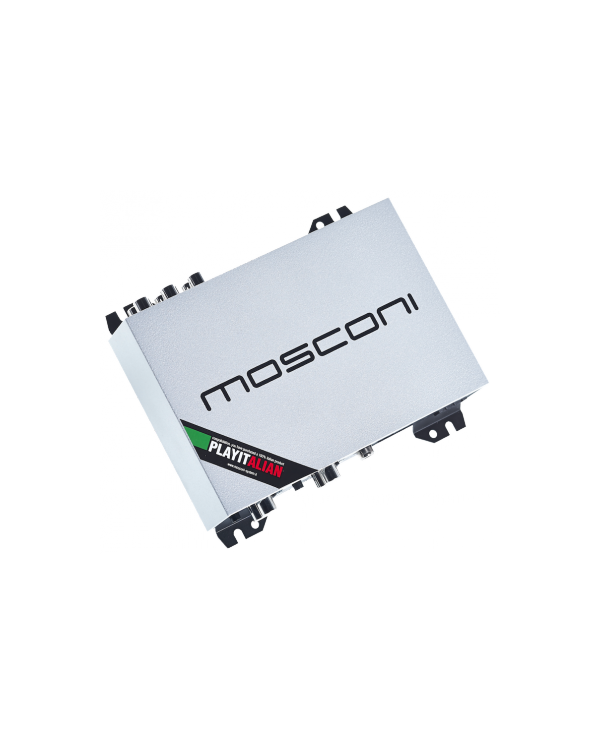

MOSCONI DSP 4to6 PROCESSORE 4 CH IN E 6 CH OUT

Technical Features: Technical Specifications: INPUT MODE: Low Level (LL) / High Level (HL) INPUT IMPEDANCE: > 10Kohm (LL) / 47ohm (HL) INPUT SENSITIVITY: 2Vrms ÷ 8Vrms (LL) / 5Vrms ÷ 20Vrms (HL) INPUT VOLTAGE REGULATION: -12dB ÷ 0dB MAX OUTPUT SIGNAL: 4Vrms OUTPUT IMPEDANCE: 50 ohm THD DISTORTION: FREQUENCY RESPONSE: 20Hz ÷ 20KHz (within -0.1dB) CHANNEL SEPARATION: >75dB (@ 1KHz) SUPPLY VOLTAGE: 11V ÷ 15V CURRENT CONSUMPTION: 0.5A @ 12V GROUND ISOLATION vs CAR BODY: 1Kohm AUTOSENSE: two operative modes (yes, HL only) REMOTE OUTPUT: 130mA max. COMMUNICATION PERIPHERALS: on-board USB, Bluetooth socket, Remote controller SIZE: 150 x 125 x 40 mm (including fixing feet) Download: Download Manual Download Software Download software and try it offline Stand Alone Processor The Digital Signal Processor with 4 inputs and 6 outputs. Available as DSP 4to6 and DSP 4to6 SP-DIF GLADEN DSP 4to6 Highest resolution, e.g. time delay in 0,02 msec/step, Q in steps of 0.001 Parametric and Graphic EQ with up to 30 (para-graphical) bands per channel pair All settings in real-time USB and BT adapter (MOS-BTM), for adjusting by PC and Android smart phone apps Low-level or High-level input with auto-sense (only by High-Level) Aux input with auto-sense for stereo signal Hands-free and mobile navigation 4 presets Mixer matrix to realize all possible mixtures and couple input and output channels as desired Intuitive User Interface and video tutorials to avoid an instruction book. Operating also without mouse, only with keys for an easy adjusting in the car DSP Technology made by cooperation MOSCONI-GLADEN Designed and made by MOSCONI, Italy GLADEN DSP 4to6 SP-DIF Like a DSP 4to6 but with digital input output Digital inputs optical and coaxial SP-Dif SP-Dif output (optical) with volume-regulated signal from channel 1+2. Note: with the digital master/slave possibility you can create a 12, 16, 24, 32…channel DSP! (Digital out and then digital in) Apps (*) Compatible with all of the new BlackBerry 10 devices, Z10, Q10, and Q5. Please note: that the BlackBerry 10 application is developed by a 3rd party developer not affiliated to Mosconi. For support, feature requests, updates, or other questions please contact the developer directly via BlackBerry World. Optionals External display/controller for presets and main controls (RDC) Externat control for Volume MASTER & Volume SUB External switch for choosing the presets Main differences between DSP 6TO8 & DSP 4TO6 & DSP 4TO6 SP-DIF
